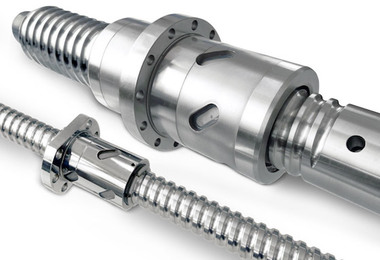

高負載滾珠絲杠

Thomson高負載滾珠絲杠是注塑、壓制和金屬加工等領域大型制造機械的理想之選。它們可安全、可靠地水平或垂直移動重型負載，同時具有長使用壽命和可靠性能，并且維護需求很低。我們的標準產品組合包括最大直徑160 mm、最大動態負載1,440 kN的規格。Thomson還可根據用戶的特定應用需求提供定制滾珠絲杠。

產品介紹

高負載滾珠絲杠規格：

直徑 (mm) (d₀)	導程 (mm) (P_h)	D_w [mm]	D₁ _[mm]	i [each]	L [mm]	C_am [kN]	C_0am [kN]	D₄ [mm]	D₅ [mm]	D₆ [mm]	D_B [mm]	L₁ [mm]	L₃ [mm]	L₇ [mm]	L₈ [mm]	L₁₀ [mm]
40	12	7.938	75	8	165.0	220	434	93	11	110	M8x1	25	7	16	85	10
50	20	9.525	90	5.8	152.0	259.4	603.4	108	11	125	M8x1	25	7	20	95	10
50	25	9.525	90	5.8	177.5	258	600.9	108	11	125	M8x1	25	7	20	95	10
50	100	9.525	90	2.4	111	100.8	231.8	108	11	125	M8x1	25	7	16	95	10
63	20	12.700	105	8	249.0	478.6	1108.7	125	13.5	145	M8x1	25	9	25	110	10
63	25	12.700	120	5.8	185.5	419.8	1002.2	145	13.5	165	M8x1	30	9	25	130	10
80	20	14.288	135	9	280.5	690.2	1860.8	155	13.5	175	M8x1	30	9	30	140	10
80	25	14.288	135	7	273.0	554.8	1445	155	13.5	175	M8x1	30	9	30	140	10
100	20	14.288	160	8	252.0	709.3	2276.5	186	17.5	212	M8x1	40	10	30	165	10
100	25	19.050	160	8	310.0	968.4	1843.8	189	17.5	212	M8x1	40	10	30	165	10
125	20	14.288	200	11	338.0	1040.1	3997.8	233	22	265	M8x1	40	10	40	205	10
125	25	19.050	200	9	349.0	1238	2753.2	233	22	265	M8x1	40	10	40	205	10
125	30	19.050	200	7	330.5	996.3	2139.6	233	22	265	M8x1	40	10	40	205	10
160	20	14.288	260	12	357.0	1279.9	5870.3	300	22	340	M8x1	40	10	45	265	10
160	25	19.050	260	9	354.0	1440.8	3772.8	300	22	340	M8x1	40	10	45	265	10
160	30	19.050	260	8	370.5	1301.2	3351.9	300	22	340	M8x1	40	10	45	265	10

高負載滾珠絲杠特點：

適用于高負載應用，且速度高、使用壽命長
相對于軋制絲杠更經濟
導程精度達±6 µm/300 mm
結構緊湊簡單，可實現更小更輕的設計
可實現高負載能力的改良滾珠螺母設計
提供采取單螺母或雙螺母的15 m絲杠長度
提供多種預加載選項
運行平滑安靜
