公制精密軋制滾珠絲杠

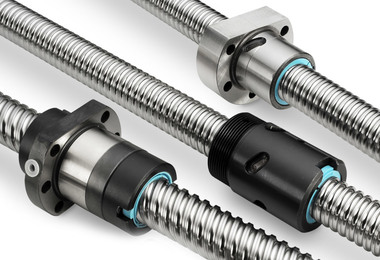

公制軋制滾珠絲杠組件專為實現安靜平穩運行和高性能而設計。其滾珠絲杠采用Thomson的德國精密絲杠成型（PSF）技術制成，可同時實現高精度（±23μm/300mm標準）和軋制工藝的高效率。滾珠螺母則利用滾珠循環系統（共有三種）采用螺紋鋼制成，因此非常耐用，適用于高速、高負載和/或高溫應用。滾珠螺母標配異形刮刷器，可容納潤滑劑并有助于抵擋細小的污染物（灰塵、粉末等）。

產品介紹

讓 Thomson 幫您做出選擇！

Linear MOTIONEERING^® Ball & Lead Screw Sizing & Selection Tool >

Precision Rolled Metric Specifications:

導程 (mm.)	導程 (mm.)
導程 (mm.)	4	5	10	20	25	32	40	50
12	X	X	X
16		X	X
20		X		X				X
25		X	X	X	X			X
32		X	X	X		X	X
40		X	X	X			X
50			X	X
63			X	X
80			X

公制精密軋制滾珠絲杠的功能特點

Manufactured by patented PSF (Precision Screw Forming) technology
Offers low cost, high precision performance in applications typically requiring ground screws
Responsive manufacturing & delivery times.
No hard spots in the screws that can mar the ball surfaces and shorten screw life.
Smoother and quieter running due to superior surface finish.

VIDEO: Ten Essential Steps for Selecting the Optimal Ball Screw

When it comes to selecting the right ball screw for your application, knowing and understanding your application’s requirements is crucial. This video covers 10 helpful steps to ensure you’re on the right path.

手冊

Metric Precision Ball Screws (Made in Germany)	1112 KB	Email
Metric Precision Ball Screws (Made in Germany)	1135 KB	Email

手冊

Assembly and maintenance instructions KGT/TGT	504 KB	Email
Assembly and maintenance instructions KGT/TGT	965 KB	Email
Assembly and maintenance instructions KGT/TGT	485 KB	Email
Assembly and maintenance instructions KGT/TGT	461 KB	Email
Assembly and maintenance instructions KGT/TGT	483 KB	Email

產品選型 >

2D/3D CAD Drawings

Assemblies
滾珠絲杠組件-公制（北美）	—	—
滾珠絲杠組件-公制（歐洲）	—	—
Ball Nuts
Flanged Ball Nuts - Metric	—	—
Threaded Ball Nuts - Metric	—	—
Cylindrical Ball Nuts - Metric	—	—
End Supports
Ball Screw End Supports - Metric	—	—
Screws
Precision Rolled Ball Screws - Metric	—	—
