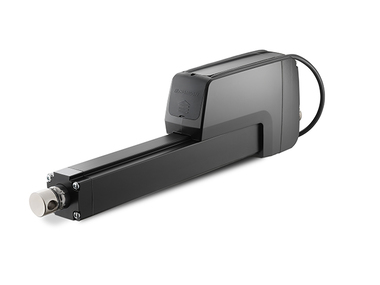

Electrak HD 電動推桿
這些智能電動推桿配備板載電子元件，無需單獨的控制系統。具有更高的功率（高達16 kN），開辟了更多液壓轉向電動應用的可能。此外，它們滿足非常嚴格的OEM組件環境驗收測試，包括IP69K。
觀看視頻：ElectrakHD電動推桿 - 強大、智能且堅固。
Tech Tips: How to Use Thomsons Position-Based Synchronization Option
With position-based synchronization, an option for select Thomson smart linear actuators that helps manage unbalanced loads, the system adjusts the speed of each actuator to keep them starting, moving and stopping synchronously, regardless of their respective load distribution.
Boost the Design IQ for Tribine Harvester
Clean and Simple: The Electrification of Applications with Linear Actuators
The trend of using electric linear actuators in machines using motion control is strong and growing. In addition to the benefits of simplicity, cleanliness, safety, space consciousness and cost saving, newer capabilities in controllability, power, shock load dampening and regen have made electrification a no-brainer for designers.
Electrak HD電動推桿規格:
| 性能規格 | HDxx-B017 | HDxx-B026 | HDxx-B045 | HDxx-B068 | HDxx-B100 | HDxx-B160 |
|---|---|---|---|---|---|---|
| 輸入電壓 (VDC) |
12VDC (tolerance: 9-16) 24VDC (tolerance: 18-32) |
12VDC (tolerance: 9-16) 24VDC (tolerance: 18-32) |
12VDC (tolerance: 9-16) 24VDC (tolerance: 18-32) |
12VDC (tolerance: 9-16) 24VDC (tolerance: 18-32) |
12VDC (tolerance: 9-16) 24VDC (tolerance: 18-32) |
12VDC (tolerance: 9-16) 24VDC (tolerance: 18-32) |
| 最小/最大行程 長度：mm |
100 / 1000 @ 50 ordering increments |
100 / 1000 @ 50 ordering increments |
100 / 1000 @ 50 ordering increments |
100 / 1000 @ 50 ordering increments |
100 / 1000 @ 50 ordering increments |
100 / 500 @ 50 ordering increments |
| 最大動態負載： N (lbs) |
1700 (382) | 2600 (585) | 4500 (1012) | 6800 (1529) | 10000 (2248) | 16000 (3597) |
| 最大靜態負載： kN (lbs) |
18 (4050) | 18 (4050) | 18 (4050) | 18 (4050) | 18 (4050) | 18 (4050) |
| 最大空載速度：mm/s（in/s） | 71 (2.8) | 40 (1.6) | 24 (0.94) | 18 (0.71) | 11 (0.43) | 7 (0.28) |
| 最大滿載速度：mm/s（in/s） | 58 (2.28) | 32 (1.3) | 19 (0.75) | 14 (0.55) | 9 (0.35) | 5 (0.20) |
| 電流消耗 @ 空載/最大負載 |
@12V - 3 / 18 @24V - 1.5 / 9 |
@12V - 3 / 18 @24V - 1.5 / 9 |
@12V - 3 / 18 @24V - 1.5 / 9 |
@12V - 3 / 20 @24V - 1.5 / 10 |
@12V - 3 / 18 @24V - 1.5 / 9 |
@12V - 3 / 20 @24V - 1.5 / 10 |
| 滿載占空比 @ 25 ºC (77 ºF) |
25% | 25% | 25% | 25% | 25% | 15% |
| 絲杠/螺母類型 | Ball / load lock ball nut | Ball / load lock ball nut | Ball / load lock ball nut | Ball / load lock ball nut | Ball / load lock ball nut | Ball / load lock ball nut |
| 工作溫度： ºC (ºF) | -40 to +70 (-40 to +158) |
-40 to +70 (-40 to +158) |
-40 to +70 (-40 to +158) |
-40 to +70 (-40 to +158) |
-40 to +70 (-40 to +158) |
-40 to +70 (-40 to +158) |
| 防護等級： 靜態/動態 |
IP67, IP69K / IP66 | IP67, IP69K / IP66 | IP67, IP69K / IP66 | IP67, IP69K / IP66 | IP67, IP69K / IP66 | IP67, IP69K / IP66 |
| 限制扭矩： br /> Nm (lbs) | 0 | 0 | 0 | 0 | 0 | 0 |
| 端隙（最大值）： mm (in) |
1.2 (0.047) | 1.2 (0.047) | 1.2 (0.047) | 1.2 (0.047) | 1.2 (0.047) | 1.2 (0.047) |
| 耐鹽霧性（小時） | 500 | 500 | 500 | 500 | 500 | 500 |
| 執行器重量 (kg) |
6.5 @ 100 mm 11.0 @ 1000 mm |
6.5 @ 100 mm 12.2 @ 1000 mm |
6.5 @ 100 mm 12.2 @ 1000 mm |
6.5 @ 100 mm 12.2 @ 1000 mm |
6.7 @ 100 mm 12.4 @ 1000 mm |
7 @ 100 mm 9.4 @ 500 mm |
Electrak HD電動推桿特點：
- 內置J1939 CAN總線
- 同步選項
- 過載保護
- 電子跳脫點校準
- 行程末端，電壓，電流監控
- 標準防旋轉驅動
- 集成手動超控輸入
- 符合CE、RoHS、REACH（EU）標準
- 板載電子元件
- 動態/抱閘
- 溫度監測
- 溫度補償
- 飛線
- 前/后U形夾選件
Electrak HD選件特點：
- EXX：僅限監測系統（EMS）
- ELX：EXX+行程末端指示輸出
- EXP：EXX+模擬位置輸出
- EXD：EXX+數字位置輸出
- ELP：ELX+模擬位置輸出
- ELD：ELX+數字位置輸出
- LPS：EXX + LXX + 可編程限位開關 + 位置反饋信號
- LXX：EXX+低電平信號開關
- LLX：EXX+LXX+行程末端輸出
- LXP：EXX+LXX+模擬位置輸出
- CNO：CAN總線SAE J1939控制 + 開環速度控制
- COO：CAN總線CANOpen控制 + 開環速度控制
- SYN：LXX + 同步選項
Electrak HD電動推桿應用：
- 單用戶維護/維修
- 快速連接
- 多用途車
- 道路施工工地設備
- 建筑工地設備
- 鐵路設備
- 物流系統
- 應急車輛
- 救援車輛
- 開關裝置
