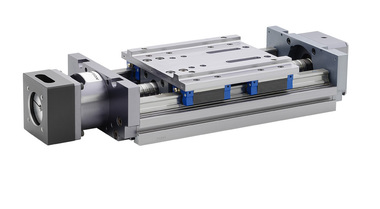

2HB（AccuSlide）直線工作臺

Thomson's 2HB (AccuSlide) is a high performance slide table based on Thomson's continuously supported, ProfileRail system using square rail technology. The units are designed to absorb extremely high load torques and offer superior performance life in difficult applications.

產品介紹

Let Thomson Help You Make Your Selection!

Linear MOTIONEERING^® LMS Sizing & Selection Tool >

2HB Linear Table Specifications:

Specifications / Shaft Size	2HB10	2HB20
Profile size (width x height): mm (in)	100 x 60 (3.9 x 2.4)	200 x 90 (7.9 x 3.5)
Max Stroke Length: mm (in)	1375 (54.13)	2760 (108.7)
Max Linear Speed: m/s (in/s)	0.47 (18.5)	0.75 (29.5)
Max Acceleration: m/s2 (in/s2)	9.8 (386)	9.8 (386)
Repeatability: ± mm (in)	0.005 (0.0002)	0.005 (0.0002)
Max Input Speed: rpm (rev/s)	2800 (46.7)	1800 (30)
Operation Temperature Limits: °C (°F)	-20 to 80 (-4 to 176)	-20 to 80 (-4 to 176)
Max Dynamic Load Fx: N (lbf)	2100 (472)	4697 (1056)
Max Dynamic Load Fy: N (lbf)	8000 (1798)	34000 (7644)
Max Dynamic Load Fz: N (lbf)	8000 (1798)	34000 (7644)
Max Dynamic Load Torque (Mx): Nm (lbf-in)	279 (2469)	2463 (21799)
Max Dynamic Load Torque (My): Nm (lbf-in)	216 (1912)	1903 (16843)
Max Dynamic Load Torque (Mz): Nm (lbf-in)	216 (1912)	1903 (16843)
Max Drive Shaft Force (Frd): N (lbf)	533 (119.8)	533 (119.8)
Max Drive Shaft Torque (Mta): Nm (lbf-in)	1.86 (16.5)	15.5 (137.2)
Screw Diameter: mm (in)	16 (0.63)	25 (0.98)
Screw Lead: mm (in)	5, 10 (0.2, 0.4)	5, 10, 25 (0.2, 0.4, 1.0)
Weight: kg (lb) of unit with zero stroke of every 100 mm of stroke of each carriage	2.59 (5.71) 0.69 (1.52) 0.82 (1.81)	13.32 (29.37) 1.70 (3.75) 4.47 (9.86)

2HB Linear Table Feature Highlights:

An integral ball screw assembly
T-slots in carriage

Low profile and compact
Long travel life capability
Double acting seals

2HB Linear Table Option Highlights:

Bellows way covers
Shroud covers
Limit switch packages

Radial mount ball screw shaft extenders
Lubrication system

手冊

Linear Units Quick Selection Guide	1333 KB	Email
Linear Motion Systems	1257 KB	Email
Linear Motion Systems	1425 KB	Email
Linear Units Quick Selection Guide	427 KB	Email

產品目錄

Linear Motion Systems	8394 KB	Email
Linear Motion Systems	8418 KB	Email
Linear Motion Systems	8430 KB	Email
直線運動系統	11656 KB	Email

計算支持

Average Load Calculation (Release 3)	107 KB	Email
Mechanical Motion Calculation (Release 6)	302 KB	Email
Move Motion Profile Calculation (Release 3)	93 KB	Email
Multi-Axis Cycle Time Calculation (Release 3)	98 KB	Email

The Linear Motion Systems Product Selector is Temporarily Unavailable

Click the button below to use the newest edition of our industry's most advanced sizing and selection tool for linear motion system: LinearMotioneering.
