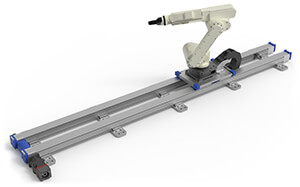

• Dual linear unit architecture for precise linear motion and maximum stiffness
• Precision gearhead and belt drive for high repeatability (25 microns per meter)
• Linear speeds up to 5 m/s
• Stroke length up to 10 m
• Cut to length to your application's required stroke length
• Limit switches for end-of-stroke protection
• Can be used horizontally or inverted (top-loading application)

• Compatible with small- to medium-sized industrial robots with overall weight less than 250 lb
• Mounting plate with pre-drilled holes for your selected robot
• Base mounting feet with pre-drilled holes to mount to your table, weldment or floor
• Cable management for robot power
• Precision gearhead with flange to mount your robot brand servo motor*

* RTU can be provided with a Kollmorgen servo motor. Contact Thomson customer support for details.

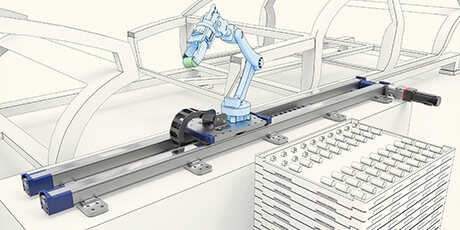

Applications:

• Large part testing and inspection
• Machine tending
• Material handling (bin picking, palletizing and packaging)
• Large-scale welding, soldering, sanding and dispensing

Compatible Robot Brands:
