鋁合金導向軸系列現已停產。

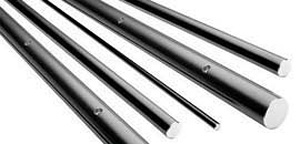

超輕鋁合金LinearRace導向軸
Thomson超輕鋁合金LinearRace導向軸是滑動軸承應用中標準Thomson 60 Case的輕量化替代品。除了重量輕65%的優點，超輕鋁合金導向軸還具有超強耐腐蝕性，適用于水洗和水下環境（相較于大多數隨時間銹蝕的鋼質導向軸）。作為非磁性材料，鋁合金導向軸是醫學影像應用的理想選擇。
讓 Thomson 幫您選擇！
- FluoroNyliner®襯套軸承推薦 >
- 超輕鋁合金導向軸手冊 >
- Linear MOTIONEERING®；直線導軌部件選型工具 >
超輕鋁合金導向軸規格：
| 標稱直徑（in） | 選型 | 直徑公差（in） | 長度公差（in） | 每英寸重量（lbs） | |
|---|---|---|---|---|---|
| 最小值 | 最大值 | ||||
| 1/4 | 實心 | 0.2488 | 0.2496 | +/- 1/32 | 0.005 |
| 3/8 | 實心 | 0.3738 | 0.3746 | +/- 1/32 | 0.010 |
| 1/2 | 實心或預鉆孔 | 0.4988 | 0.4996 | +/- 1/32 | 0.019 |
| 5/8 | 實心或預鉆孔 | 0.6238 | 0.6246 | +/- 1/32 | 0.030 |
| 3/4 | 實心或預鉆孔 | 0.7488 | 0.7496 | +/- 1/32 | 0.043 |
| 1 | 實心或預鉆孔 | 0.9988 | 0.9996 | +/- 1/32 | 0.077 |
超輕鋁合金導向軸優點：
- 6061-T6鋁合金，帶硬度HRC 70的陽極氧化鍍層
- 圓度小于0.000080，錐度0.0001（最大值）
- 表面光潔度16 Ra（最大值）
- 最大訂購長度為120”
- 直線度：每英尺最大累積誤差0.001（0.002 TIR）
- 非常適合用于Thomson FluoroNyliner襯套軸承
- 可提供特殊加工
- 根據要求提供公制尺寸
